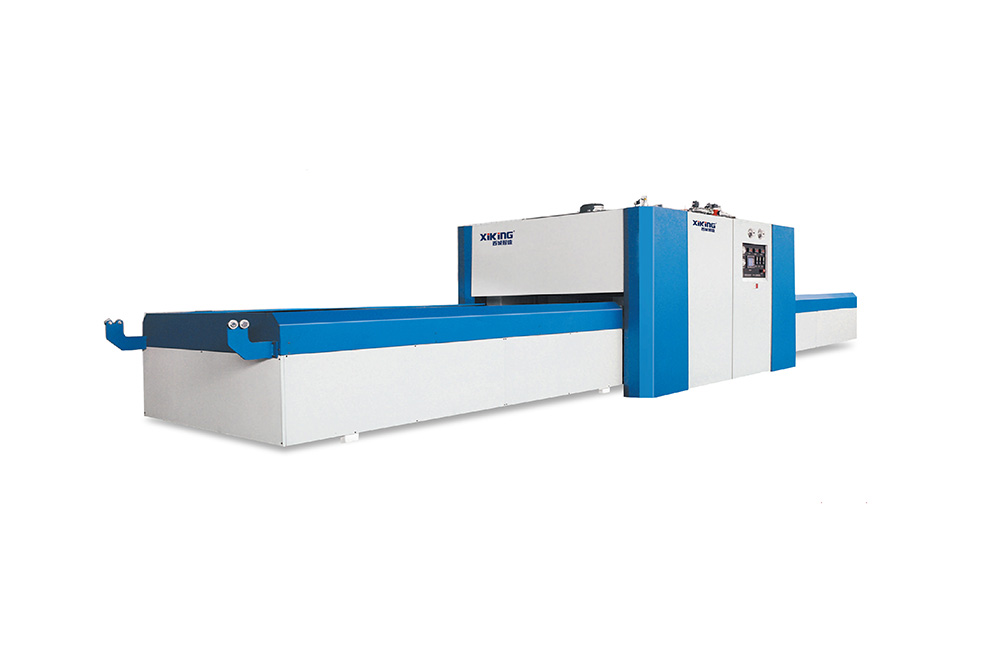

產(chǎn)品中心TM2580B多功能異型板材貼面專用正負壓機
參數(shù)配置
|
型號 |
Model |
TM2580B 加熱管型Pipe heating |
TM2580C 導熱油加熱Oil heating |
|
外型尺寸 |
Dimension |
10080x2400x2180mm |
6600x2140x2150mm |
|
工作臺內(nèi)徑 |
Table Surface |
2580x1270mm |
2580x1270mm |
|
額定工作壓力 |
Working Pressure |
正壓(positive pressure)≤0.5Mpa 負壓(vacuum)≥-0.09Mpa |
正壓(positive pressure)≤0.5Mpa
負壓(vacuum)≥-0.09Mpa |
|
加工高度 |
Thickness |
40mm |
40mm |
|
總功率 |
Power |
30KW |
30KW |
|
電源電壓 |
Voltage |
380V 50Hz |
380V 50Hz |
|
機器重量 |
Weight |
11T |
12T |
